Hercules Wireless N Router H WNR -300

68/102 – User Manual

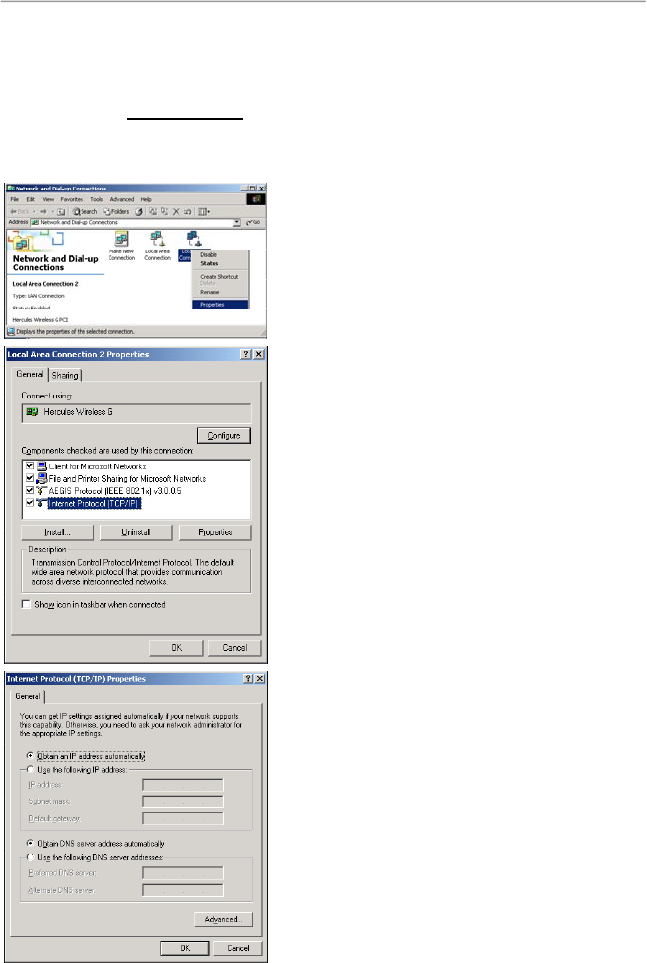

4.4.6. Windows 2000: Sharing an ADSL connection in an

Infrastructure network

Proceed as follows for each computer that will use the shared Internet connection:

1. Click Start/Settings/Network and Dial-up Connections.

2. Select the connection to the local area network

corresponding to your Hercules Wireless G device.

3. Right-click the connection and select Properties.

4. In the Local Area Connection Properties window, select

Internet Protocol (TCP/IP).

5. Click Properties.

6. In the Internet Protocol (TCP/IP) Properties window,

select Obtain an IP address automatically and O b t a i n

DNS server address automatically.

7. Click OK to close the windows.

Windows may prompt you to restart your computer.

To access the Internet, you can now simply launch your

Internet browser.
